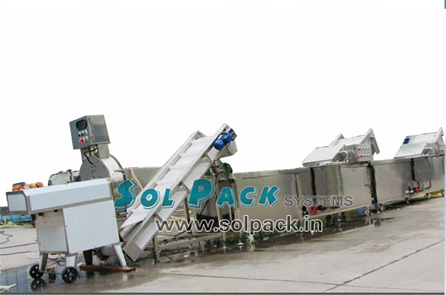

FW-2000 Vegetable Cutting & Washing Line
|
 |
| |
|
Back Product Page |
| |
|
| |
|
|
Product Details: |
|
Hearty service
|
| 1. Before sending the machine, we will test and adjust, so you can use directly when you get it.
2. Operating video & instruction will be sent to clients, to help them better use the machines.
3. Any problems occur while using, professional advice will be given by us.
4. All kinds of frequently used parts are supplied from us all the year round. |
FC-306
|
| It Cuts leaf vegetable like Spinach, Leek, Celery, Cabbage and water convolvulus, Cucumber, eggplant. The multi-functional vegetable cutter can cut very kinds of vegetable into piece, strip or dice shape.
|
Usage:
|
| 1.This multi-functional vegetable cutting machine can cut scallion, bamboo shoot, garlic, leek, celery, Chinese cabbage, fish, sponge, paste and melon etching into strip shape.
2. This multi-functional vegetable cutter possesses the function of slicing and threading, such as potato, lotus root.
3.This multi-functional vegetable cutting machine also can cut kelp into square shape.
4. This multi-fictional vegetable cutter can also cut meat, such as barbecued pork, pig head pork, pig/cattle stomach.
|
Synopsis:
|
| 1.The multi-functional vegetable cutter can cut every kinds of vegetable into flake, strip or dice shape easily.
2.The multi-functional vegetable cutter is easy to operate and clean.
3.The vegetable cutter has compact structure and beautiful appearance.
|
Main technical pa
rameters of the multi-functional vegetable cutter:
Dimension |
970X 760X 1500mm |
Cutting Size |
1-60mm (adjustable) |
Net Weight |
140KG |
Capacity |
800-1500Kg/h |
Width of Belt |
160mm |
Voltage |
220V single phrase |
Power |
2HP+ 1 HP |
|
WA-2000
|
| There are our specific designed machine for washing vegetables. Its principle is: by the stirring power produced by air flow and water flow, that machine can wash vegetables completely. Inject water inside the washing case before operation. There're many air pipe under the machine. The air bubble jumps into water from the pump, which forms waves to wash vegetables. There're also some spraying pipes on the machine to wash once again the vegetables from water case. |
| This Machine replaces human labor and simplifies procedures. The whole machine is made of 304# stainless steel (except motor, electric apparatus and axes). It fits the health & sanitary requirements of food processing industry, with features of easy operation, low noise and high efficiency.
|
Main technical parameters of the multi-functional vegetable cutter:
Dimension |
3400x1160x1300 mm |
Power of Motor |
0.75 KW |
Belt Revolution |
1410 r/min |
Reduction Ratio |
1:43 |
Pump Model |
HG2200S model, vortex type |
Power of Pump |
1.1 |
Max Air Flow of Pump |
250 m3/h |
Max Pressure of Pump |
36 Kpa |
Pump Revolution |
2800 r/min |
Voltage |
380V/50Hz |
|
